Dimensions of Finished Hexagonal Nuts and Jam Nuts (ASA B18.2-1952)


This table contains dimensions of finished hexagonal nuts and jam nuts ranging in thread size from 1/4 inch to 3 inch nominal diameter.

This table includes maximum and minimum nut width and height, (across flats and corners) information.

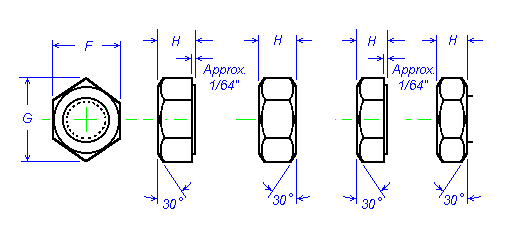

Nut Illustration

NOTES: All dimensions are in inches. "Finished" in the title refers to the quality of manufacture and the closeness of tolerance and does not indicate that surfaces are completely machined. Taper of the sides of nuts (angle between one side and axis) shall not exceed 2 degrees, the specified width across flats being the largest dimension. Tops of nuts shall be flat and chamfered. Diameter of top circle shall be maximum width across flats within a tolerance of minus 15 percent for washer-faced nuts and within a tolerance of minus 5 percent for double-chamfered nuts. Bearing surface shall be washer-faced or with chamfered corners. Diameter of circle of bearing surface shall be the maximum width across flats within a tolerance of minus 5 percent. Tapped hole shall be counter-sunk 1/64 in over the major diameter of thread for nuts up to and including 1/2 in and 1/32 in over the major diameter of thread for nuts over 1/2 inch in size. Bearing surface shall be at right angles to axis of the threaded hole within a tolerance of 2 degrees for 5/8 in nuts or smaller and 1 degree for nuts larger than 5/8 in; therefore the maximum total runout of bearing face would equal the tangent of specified angle times the distance across the flats. Thread shall be coarse, fine, or 8-thread series, class 2B. Suitable material for steel nuts is covered by ASTM A-307; other materials will be as agreed upon by manufacturer and user. Tolerance on width across flats may be increased 0.015 in for hot-formed nuts 5/8 in and smaller.

Nominal                             Width across
size or       Width across flats    corners       Thickness, nuts    Thickness, jam nuts
basic major          F                  G                H                    H
diameter      --------------------- ------------ ------------------- -------------------
of thread     Max     (basic) Min   Max    Min   Nom     Max   Min   Nom     Max   Min
------------- ------- ------- ----- -----  ----- ------- ----- ----- ------- ----- -----
# 1/4  0.2500    7/16 0.4375  0.428 0.505  0.488  7/32   0.226 0.212   5/32  0.163 0.150
# 5/16 0.3125    1/2  0.5000  0.489 0.577  0.557 17/64   0.273 0.258   1/16  0.195 0.180
# 3/8  0.3750    9/16 0.5625  0.551 0.650  0.628 21/64   0.337 0.320   7/32  0.227 0.210
# 7/16 0.4375   11/16 0.6875  0.675 0.794  0.768  3/8    0.385 0.365   1/4   0.260 0.240
# 1/2  0.5000    3/4  0.7500  0.736 0.866  0.840  7/16   0.448 0.427   5/16  0.323 0.302
# 9/16 0.5625    7/8  0.8750  0.861 1.010  0.982 31/64   0.496 0.473  11/32  0.365 0.323
# 5/8  0.6250   15/16 0.9375  0.922 1.083  1.051 35/64   0.559 0.535   3/8   0.387 0.363
# 3/4  0.7500 1-1/8   1.1250  1.088 1.299  1.240 41/64   0.665 0.617  27/64  0.446 0.398
# 7/8  0.8750 1-5/16  1.3125  1.269 1.516  1.447  3/4    0.776 0.724  31/64  0.510 0.458
# 1    1.0000 1-1/2   1.5000  1.450 1.732  1.653 55/64   0.887 0.831  35/64  0.575 0.519
1-1/8  1.1250 1-11/16 1.6875  1.631 1.949  1.859 31/32   0.999 0.939  39/64  0.639 0.579
1-1/4  1.2500 1-7/8   1.8750  1.812 2.165  2.066 1-1/16  1.094 1.030  23/32  0.751 0.687
1-3/8  1.3750 2-1/16  2.0625  1.994 2.382  2.273 1-11/64 1.206 1.138  25/32  0.815 0.747
1-1/2  1.5000 2-1/4   2.2500  2.175 2.598  2.480 1-9/32  1.317 1.245  27/32  0.880 0.808
1-5/8  1.6250 2-7/16  2.4375  2.356 2.815  2.686 1-25/64 1.429 1.353  29/32  0.944 0.868
1-3/4  1.7500 2-5/8   2.6250  2.538 3.031  2.893 1-1/2   1.540 1.460  31/32  1.009 0.929
1-7/8  1.8750 2-13/16 2.8125  2.719 3.248  3.100 1-39/64 1.651 1.567 1-1/32  1.073 0.989
2      2.0000 3       3.0000  2.900 3.464  3.306 1-23/32 1.763 1.675 1-3/32  1.138 1.050
2-1/4  2.2500 3-3/8   3.3750  3.262 3.897  3.719 1-59/64 1.970 1.874 1-13/64 1.251 1.155
2-1/2  2.5000 3-3/4   3.7500  3.625 4.330  4.133 2-9/64  2.193 2.089 1-29/64 1.505 1.401
2-3/4  2.7500 4-1/8   4.1250  3.988 4.763  4.546 2-23/64 2.415 2.303 1-37/64 1.634 1.522
3      3.0000 4-1/2   4.5000  4.350 5.196  4.959 2-37/64 2.638 2.518 1-45/64 1.643 1.643
------------- ------- ------- ----- -----  ----- ------- ----- ----- ------- ----- -----
# Products unified dimensionally with British and Canadian standards.
